Dispensing system is many kinds of application.
There are many how to choose dipensing system and a lot of applicable chemicals.
You have to consider various matters to get best dispensing solution.
DISPENSING MATERIAL
■ VISCOSITY
Viscosity is the most information when choose dispensing system.
From low viscosity such as water to highly viscosity material on paste is
also very diverse. Viscosity is necessarily what you need to know,
you can convert the approximate viscosity of the liquid refer to viscosity chart.
■ TYPE
Cyano type bond(Adhesive), 1K Epoxy, 2K Epoxy, Anaerobic bond,
UV bond, TRV silicone etc.
DISPENSING VOLUME & PATTERN
Cyano type bond(Adhesive), 1K Epoxy, 2K Epoxy, Anaerobic bond,
UV bond, TRV silicone etc.
Dispensing volume and error rate must be accurate.
ex) Dispensing volume 0.1㎖, ±10% less than (1㎖=1cc)

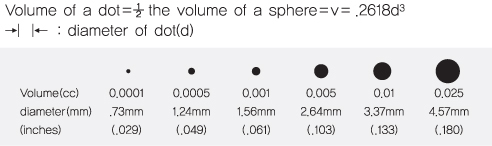

Dots

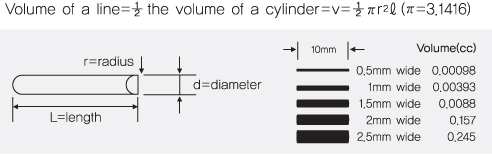

Lines

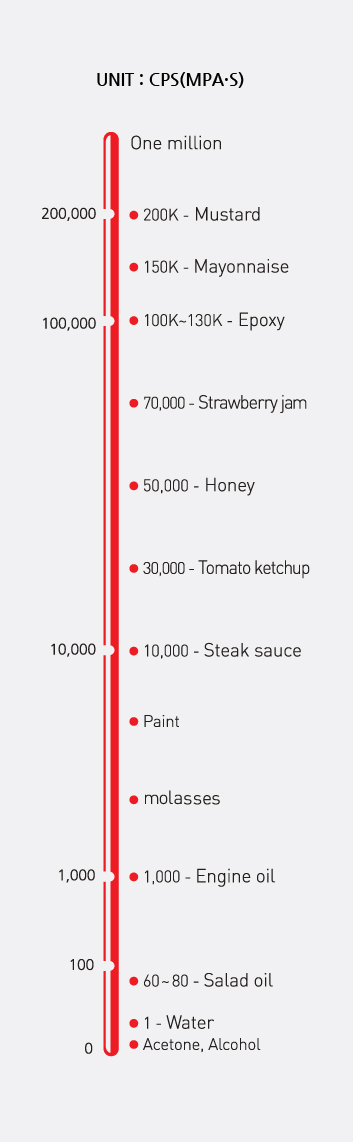

VISCOSITY CHART

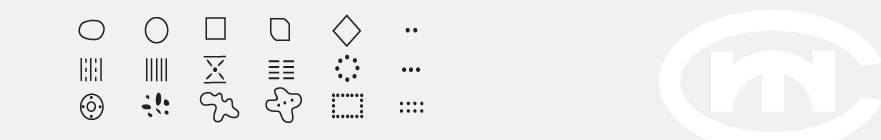

PATTERN
You need shower needle, special needle and robot system for various dispensing system.
It's good for best system to consult with us.
